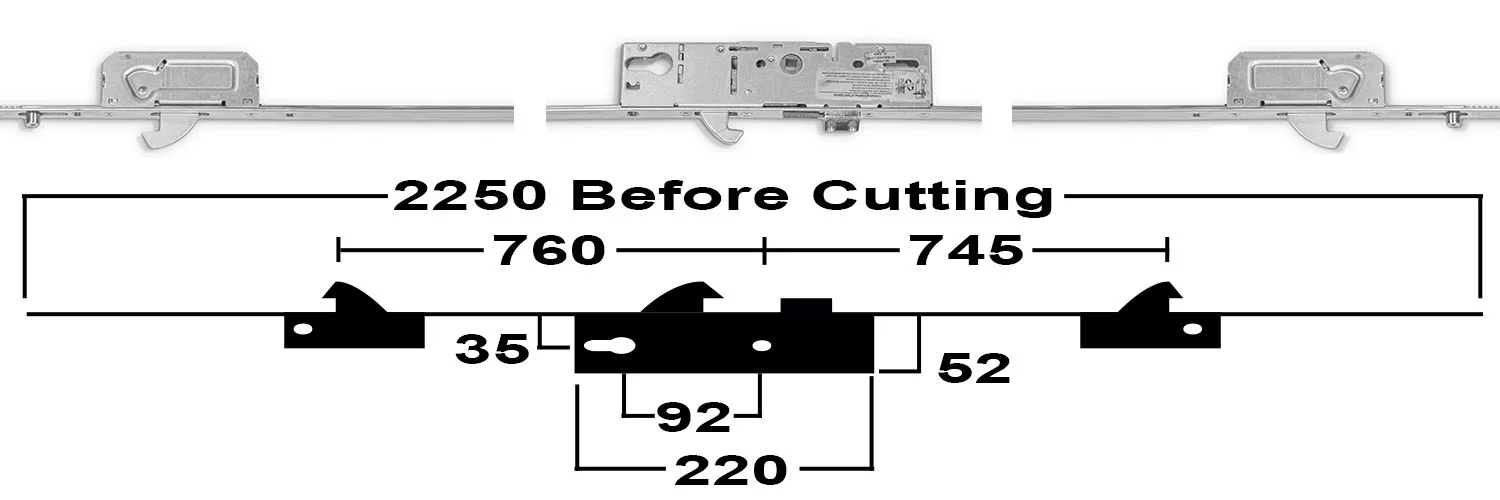

Saracen 3 Hook 2 Roller UPVC Door Lock – Apart
Saracen 3 Hook 2 Roller Multipoint upvc Door Lock
N.B This Saracen lock used to come with ‘Mini’ hooks, it has been updated to have full size hooks as shown in the photo. The hook gearboxes are 110mm long by 45mm deep. If you are replacing an old style ‘Mini’ hook Saracen lock you may have to enlarge the holes in the door for the hook cases. Also as you can see in the photo the lock has a hook in the centre where previously there was a deadbolt. You can still use the original keep on the frame as the hook comes out in the same position as the deadbolt did. Occasionally you may need to remove some plastic from behind the centre keep to allow the hook to locate behind.
Spindle to key |
92mm |
Backset |
35mm |
Centre of spindle hole to top hook |
745mm |
Centre of spindle hole to bottom hook |
760mm |
£102.00
£85.00excluding VAT
