WinkHaus Cobra M2 2 Hook 20mm Face Plate Multipoint Door Lock

WinkHaus Cobra M2 2 Hook 20mm Face Plate Multipoint Door Lock

£109.61 – £119.21
£91.34 – £99.34excluding VAT

WinkHaus Multipoint Door Lock Specification:

Spindle to key: 92mm
Backset: 35mm, 45mm, 55mm
Lever Lever or Lever Pad locking operation
2 hook
1 centre latch
1 deadbolt
This WinkHaus Multipoint Door Lock can be handed LH or RH by removing the centre latch and turning it.
20mm wide face plate.
The letters WINK HAUS will be engraved somewhere on the lockstrip

SKU: WH-DBWI2H-20 Categories: , , ,

Description

Click here to view ‘Backset’ and ‘Spindle to key’ measurements

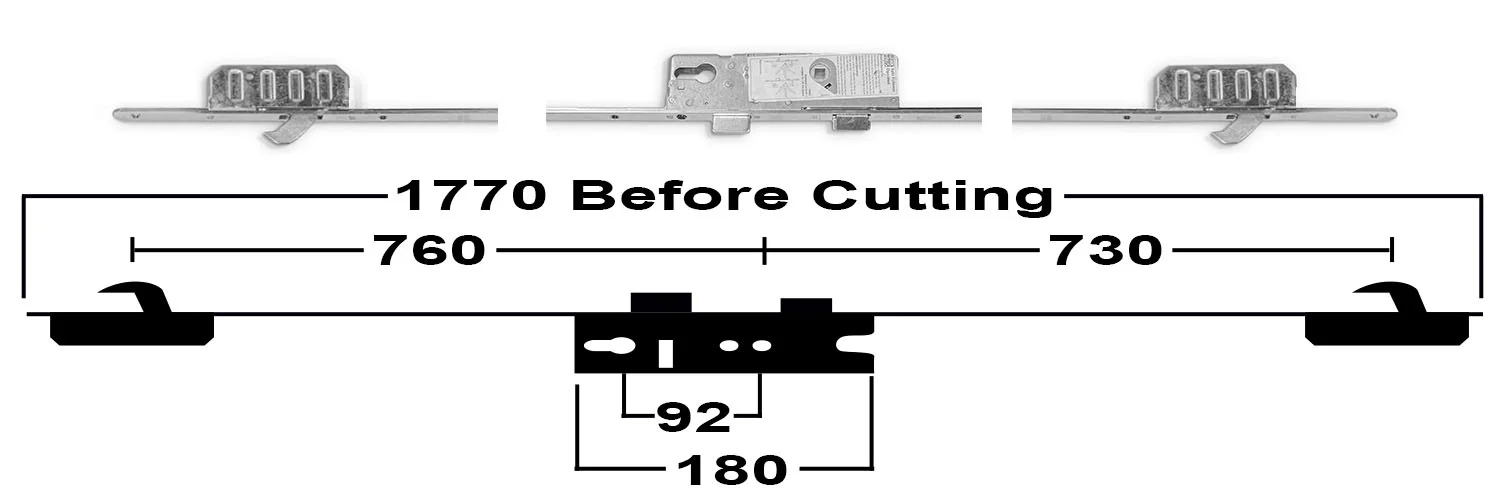

Centre of spindle hole to centre of top hook gearbox: 730mm
Centre of spindle hole to centre of bottom hook gearbox: 760mm

Split spindle follower: allows the multipoint lock to work with lever/pad handles so that a key must be used to gain access even when the door isnt locked (available in 35mm, 45mm and 55mm b/set only)

diagram of lever/lever handle

Click here to view suitable lever/lever handles.

diagram of lever/pad handle

Compatible Lever/Pad handles:
Hoppe Atlanta 220mm 92/92PZ Lever Pad Handles

Please check that these handles cover any existing screw holes in the door.

Additional information

Weight 3 kg
Backset

35mm, 45mm, 55mm
Rail Width

20mm
Split Spindle Follower

No, Yes
