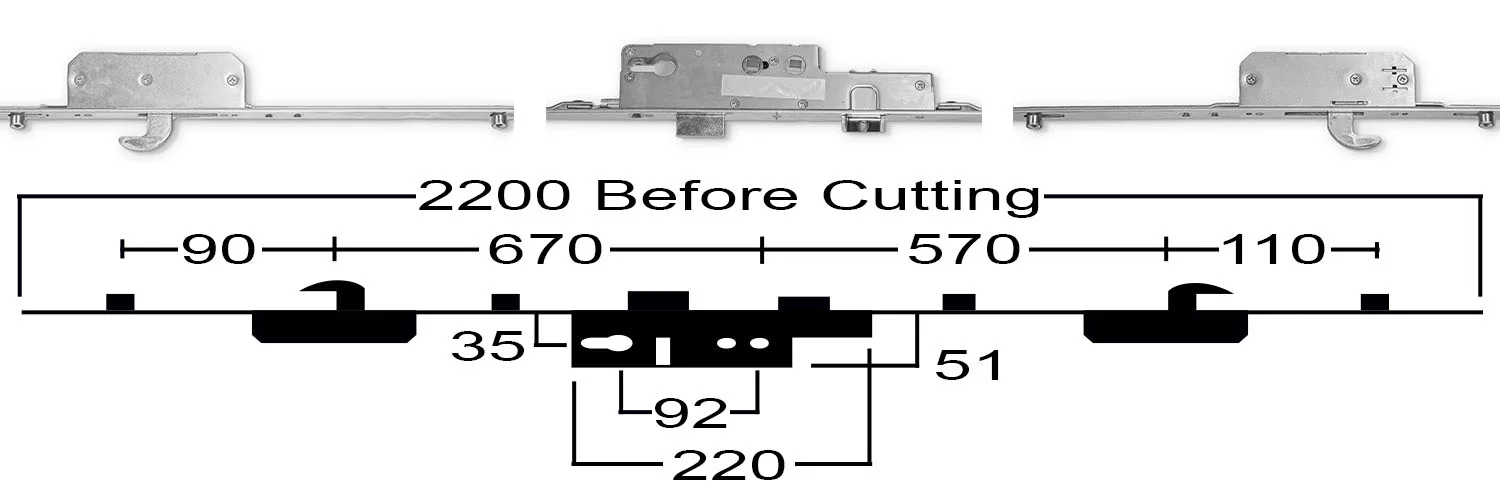

Avocet 2 Hook 4 Roller Multipoint Lock – Silver

Avocet 2 Hook 4 Roller Multipoint upvc Door Lock

Spindle to key 92mm
Backset 35mm
Centre of top spindle hole to centre of top gearbox 570mm
Centre of top spindle hole to centre of bottom gearbox 670mm



£83.10
£69.25excluding VAT

Description

Avocet Multipoint Door Lock Specification:

Please note, there are two types of Avocet 2 hook 4 roller door lock. One is silver in colour, the other is brass in colour, they are not interchangeable as the position of the roller cams is different. Please select the correct type – see additional photo below for more info.

2 Hook
4 roller cams
1 centre latch
16 mm wide brass lockstrip.
Avocet may be printed into the lockstrip.
Lever Lever or Lever Pad locking operation.
This Avocet door lock can be handed LH or RH by removing the centre latch and turning it.

Click here to view ‘Backset’ and ‘Spindle to key’ measurements

Compatible Lever/Lever Handles:

diagram of lever/lever handle

Click here to view suitable Lever/Lever door handles.

Compatible Lever/Pad handles:

diagram of lever/pad handle
Click here to view suitable Lever/Pad door handles.

Please check that these handles cover any existing screw holes in the door.

Additional information

Weight 3 kg
