ERA 2 Mini Hook Flat Ended 20mm Faceplate Multipoint Door Lock

ERA 2 Mini Hook Flat Ended 20mm Faceplate Multipoint Door Lock

ERA 2 Mini Hook 20mm Faceplate Multipoint Door Lock

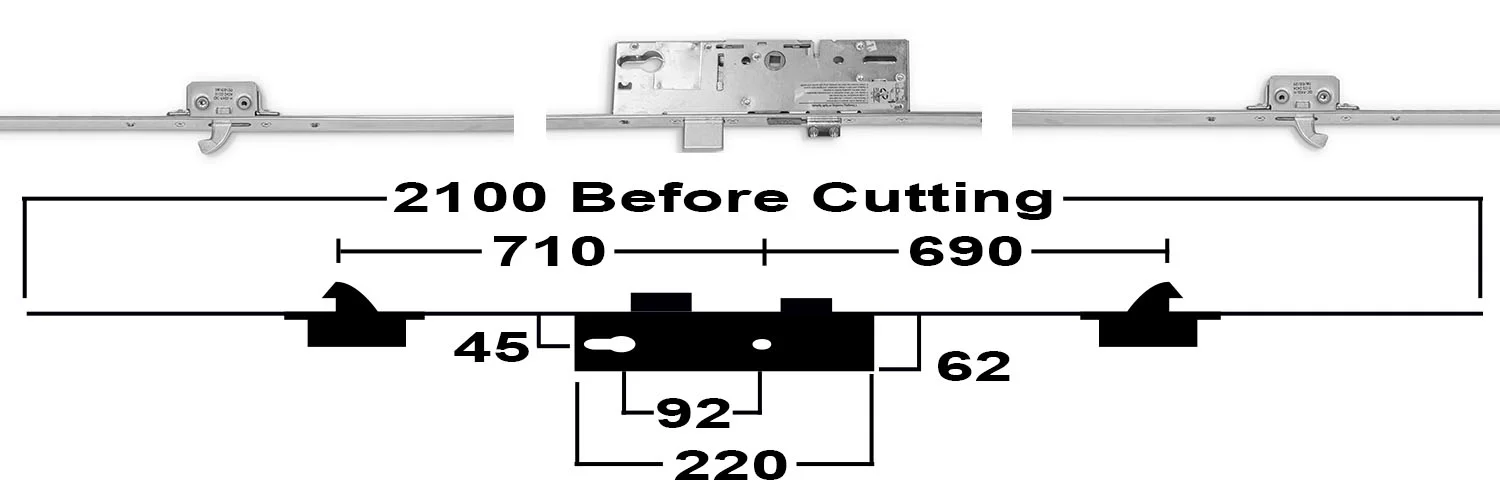

Spindle to key 92mm
Backset 45mm
Centre of spindle hole to top hook 690mm
Centre of spindle hole to bottom hook 710mm

ERA Door Lock Specification:

2 mini hook
1 centre latch
1 deadbolt
20 mm wide face plate with flat ends
Lever/Lever or Lever/Pad locking operation
This ERA door lock can be handed LH or RH by removing the centre latch and turning it.

£100.94
£84.12excluding VAT

SKU: ER-DBER2MH-F Categories: , , ,

Description

Click here to view ‘Backset’ and ‘Spindle to key’ measurements

diagram of lever/lever handle

Click here to view suitable Lever/Lever door handles.


diagram of lever/pad handle
Click here to view suitable Lever/Pad door handles.

Please check that these handles cover any existing screw holes in the door.

Additional information

Weight 2 kg
